APC Back up UPS 1000vA BV1000 – BV1000I-MSX

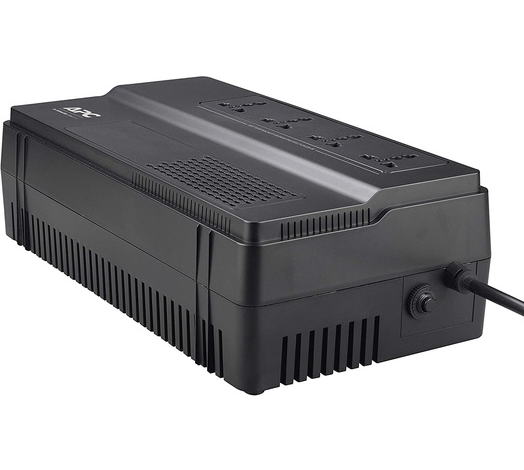

The APC Back-UPS BV1000 (also known as BV1000I-MSX) is an uninterruptible power supply (UPS) manufactured by APC (American Power Conversion), a leading provider of power protection solutions. The BV1000 is designed to provide backup power and surge protection to connected devices in the event of a power outage or fluctuations in the electrical supply.

Capacity: The BV1000 has a capacity of 1000 volt-amps (VA) or 600 watts, which means it can supply power to devices with a combined load of up to 1000 VA or 600 watts. This capacity determines the number and type of devices it can support during a power outage.

Topology: The BV1000 uses offline/standby topology. In normal conditions, the UPS remains in standby mode, allowing the connected devices to receive power directly from the main utility supply. When a power outage occurs or the voltage falls outside a safe range, the UPS switches to battery power, providing uninterrupted power to the connected devices.

Battery Backup: The UPS is equipped with a built-in sealed lead-acid battery that provides backup power during outages. The battery can keep the connected devices running for a certain period, depending on the load and battery condition. The BV1000 typically offers a backup runtime of a few minutes to allow for safe shutdown of devices or to provide temporary power until the main power supply is restored.

Surge Protection: The BV1000 incorporates surge protection to safeguard connected devices against power surges, spikes, and other electrical disturbances. It helps prevent damage to sensitive electronic equipment like computers, routers, modems, and other peripherals.

Connectivity: The BV1000 comes with multiple power outlets (typically with battery backup and surge protection) to connect and power various devices. It may also have outlets that provide surge protection only, which can be useful for devices that don’t require battery backup.

Indicators and Controls: The UPS has LED indicators that display the status of various functions such as power on, battery status, overload, and fault conditions. It may also have audible alarms to notify users of specific events or issues. Some models offer control buttons to perform functions like initiating a self-test or muting alarms.

Software and Connectivity: Depending on the model, the BV1000 may offer connectivity options such as USB or serial ports, allowing you to connect it to a computer and use software for advanced monitoring, configuration, and management of the UPS.

Overall, the APC Back-UPS BV1000 (BV1000I-MSX) is designed to provide reliable backup power and surge protection for your critical electronic devices, ensuring their continuous operation and protecting them from power-related issues.

Specifications for the APC Back-UPS BV1000 (BV1000I-MSX):

Capacity: 1000 volt-amps (VA) / 600 watts

Topology: Standby

Input Voltage: 230V

Input Frequency: 50/60 Hz (auto-sensing)

Output Voltage: 230V

Output Frequency: 50/60 Hz (auto-sensing)

Transfer Time: 6 ms typical

Waveform Type: Stepped approximation to a sinewave

Battery Type: Sealed Lead-Acid

Battery Life: 3-5 years (depending on usage)

Typical Recharge Time: 6 hours

Surge Energy Rating: 273 Joules

Number of Outlets: 4

Outlet Types: IEC C13 (3), IEC C13 with battery backup (1)

Data Line Protection: RJ-45 10/100 Base-T Ethernet protection

Software Compatibility: PowerChute Personal Edition (Compatible with Windows operating systems)

Dimensions (H x W x D): 188 x 92 x 310 mm (7.4 x 3.6 x 12.2 inches)

Weight: 5.58 kg (12.31 lbs)

Audible Alarm: Battery backup alarm, low battery alarm, overload continuous tone alarm

Operating Temperature: 0°C to 40°C (32°F to 104°F)

Operating Relative Humidity: 0% to 95% non-condensing

Storage Temperature: -15°C to 40°C (5°F to 104°F)

Storage Relative Humidity: 0% to 95% non-condensing

Certifications: CE, REACH, TUV-GS
