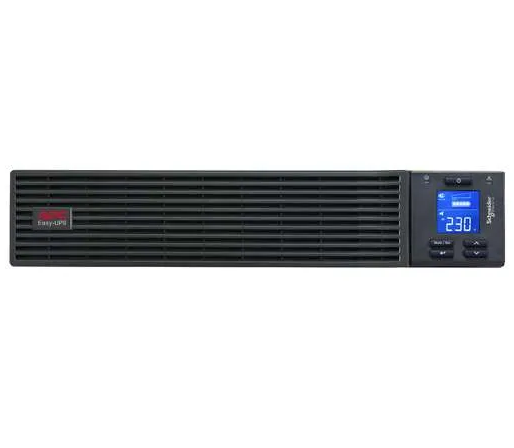

The APC Easy UPS On-Line SRV1KRIRK is a high-quality, double-conversion online UPS designed to meet essential power protection needs in even the most unstable power conditions. This 2U rackmount UPS provides reliable power backup for critical equipment such as servers, network devices, and sensitive electronics.

Key Features:

• Output Power Capacity: 800 Watts / 1.0 kVA
• Rack Height: 2U
• Output Connections: 3x IEC 60320 C13 (Battery Backup)
• Nominal Output Voltage: 230V (Configurable for 220V, 230V, or 240V)
• Nominal Input Voltage: 230V
• Input Connections: IEC 60320 C14
• Cord Length: 1.5 meters
• LCD Display: Intuitive interface with text and mimic diagrams for easy monitoring and control

Protection & Performance:

• Double Conversion On-Line Technology: Guarantees high-quality power by regenerating the waveform via AC to DC and then DC to AC conversion, ensuring zero transfer time.
• Automatic Internal Bypass: Ensures a fast and reliable transfer to and from bypass during overload conditions.
• ECO Mode: Increases efficiency by bypassing unused electrical components during stable power conditions.
• Pure Sine Wave Output: Provides the highest degree of compatibility for active PFC servers and sensitive electronics.
• Input Power Factor Correction: Reduces installation costs by allowing the use of smaller generators and cabling.

Battery & Runtime:

• Battery Type: Lead-acid battery
• Typical Recharge Time: 4 hours
• Replacement Battery: APCRBCV200
• Expected Battery Life: 3 to 5 years
• Battery Charge Power: 30 Watts
• Runtime: View detailed runtime graph for load-specific runtimes

Serviceability:

• Predictive Failure Notification: Provides early-warning fault analysis for proactive component replacement.
• Automatic Self-Test: Periodic battery self-test ensures early detection of a battery that needs to be replaced.
• Disconnected Battery Notification: Alerts when a battery is not available to provide backup power.

Management & Connectivity:

• Intelligent Card Slot: Customize UPS capabilities with optional management cards.
• Interface Ports: Includes DB-9 RS-232, Smart-Slot, and USB for versatile connectivity options.
• Management Software: Allows easy monitoring and management of the UPS, including scheduling automatic shutdowns and monitoring power grid occurrences.

Physical Specifications:

• Dimensions (H x W x D): 8.6 cm x 43.7 cm x 31.2 cm
• Net Weight: 11.0 kg
• Color: Black
• Mounting Kit: Includes rail kit for easy rackmount installation

Environmental Specifications:

• Operating Temperature: 0 to 40°C
• Storage Temperature: -20 to 50°C
• Operating Relative Humidity: 0 to 95% non-condensing
• Storage Relative Humidity: 0 to 95% non-condensing
• Operating Elevation: 0 to 3000 meters
• Storage Elevation: 0 to 15000 meters
• Audible Noise: 50 dBA at 1 meter from the surface of the unit
• Online Thermal Dissipation: 372 BTU/hr
• Protection Class: IP20

Conformance:

• Certifications: CE, EAC, TISI
• Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018

Included Accessories:

• 1x IEC 60320 C13 to Schuko power cable
• 1x IEC 60320 C13 to C14 power cable
• 1x USB cable
• 1x RS-232 configuration cable
• User manual

The APC Easy UPS On-Line SRV1KRIRK provides robust and reliable power protection with advanced features to ensure continuous operation of critical equipment, making it an ideal choice for demanding IT environments.
