High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

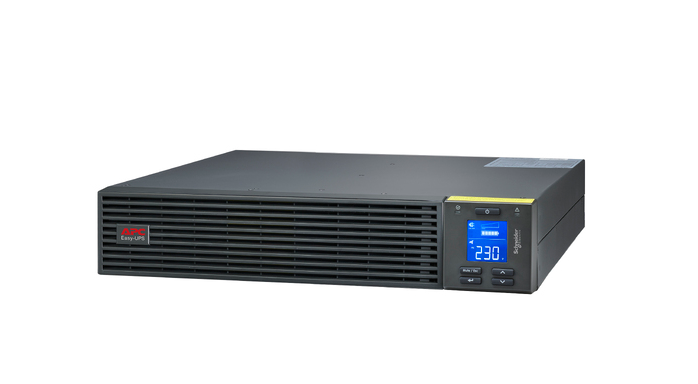

Includes: Basic UPS signaling RS-232 cable, CD with software, Rack mounting brackets, Rack mounting support rails, USB cable, User manual. The APC Easy UPS On-Line SRV 2000VA RM 230V with Rail Kit (SRV2KRIRK) is a high-quality, double-conversion on-line uninterruptible power supply (UPS) designed for essential power protection needs, even in the most unstable power conditions. This robust UPS ensures your critical devices remain powered during outages and fluctuations, providing peace of mind and Outputs Power Capacity: 1.6kWatts / 2.0kVA
Rack Height: 2U
Output Connections: 4 x IEC 60320 C13 (Battery Backup)
Nominal Output Voltage: 230V
Nominal Input Voltage: 230V
Input Connections: IEC 60320 C14
Cord Length: 1.5 meters

Key Features

• High Performance: Double-conversion on-line UPS for consistent and reliable power protection.
• Output Capacity: 2000 VA / 1600 W
• Input Voltage: 230 V (supports 220 V and 240 V)
• Output Voltage: Configurable for 220, 230, or 240 V
• Input Connection Type: IEC 60320 C14
• Output Connection Type: 4 x IEC 60320 C13

Advanced Features

• Automatic Internal Bypass: Pure static bypass switch ensuring a fast and reliable transfer to and from bypass, rated for 125% nominal load.
• Automatic Restart: Automatically starts up connected equipment upon the return of utility power.
• ECO Mode: Bypasses unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.
• Input Power Factor Correction: Minimizes installation costs by enabling the use of smaller generators and cabling.
• Intelligent Battery Management: Maximizes battery performance, life, and reliability through intelligent, precision charging.
• Intelligent Card Slot: Customize UPS capabilities with management cards.
• LCD Graphics Display: Text and mimic diagrams displaying modes of operation, system parameters, and alarms.
• Serial and USB Connectivity: Provides management of the UPS via serial and USB ports.

Runtime and Efficiency

• Efficiency: 88% at full load
• Battery Type: Lead-acid battery
• Battery Voltage: 48 V
• Battery Recharge Time: 4 hours
• Battery Life: 3 to 5 years
• Replacement Battery: APCRBCV201

Physical Specifications

• Color: Black
• Dimensions: 8.6 cm (H) x 43.7 cm (W) x 46.2 cm (D)
• Net Weight: 18.2 kg
• Shipping Dimensions: 21.8 cm (H) x 70.0 cm (W) x 55.0 cm (D)
• Shipping Weight: 20.7 kg

Environmental Specifications

• Operating Temperature: 0 to 40 °C
• Storage Temperature: -20 to 50 °C
• Humidity: 0 to 95% non-condensing (both operating and storage)
• Operating Altitude: 0 to 3000 m
• Storage Altitude: 0 to 15000 m
• Acoustic Level: 50 dBA
• Heat Dissipation: 745 Btu/h
• IP Degree of Protection: IP20

Communications & Management

• Control Panel: Multifunction LCD status and control console
• Interface Ports: DB-9 RS-232, USB
• SmartSlot™ Interface: 1 available slot
• Surge Energy Rating: 600 Joules

Certifications and Standards

• Product Certifications: CE, EAC, TISI
• Standards Compliance:
  • EN/IEC 62040-1:2019/A11:2021
  • EN/IEC 62040-2:2006/AC:2006
  • EN/IEC 62040-2:2018

Additional Features

• Pure Sine Wave Output: Simulates utility power for the highest degree of compatibility for active PFC servers and sensitive electronics.
• Generator Compatible: Ensures clean, uninterrupted power to protected equipment when generator power is used.
• Management Software: Allows easy monitoring of utility power and UPS management.
• Safety-Agency Approved: Ensures the product has been tested and approved to work safely with connected service provider equipment.

Warranty

• Standard Warranty: 1 year repair or replace
• Sustainable Offer Status: RoHS Compliant
