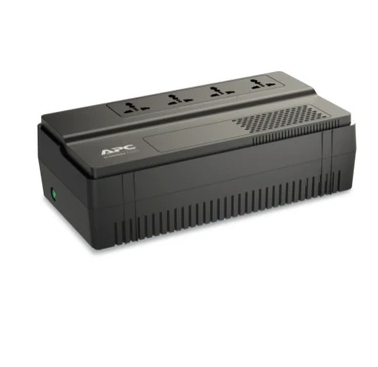

The APC BV800I-MSX is a reliable Line-Interactive UPS designed to provide essential power backup and protection for your sensitive electronics and critical devices. With a power rating of 800VA/450W, this UPS ensures that your equipment stays operational during power disturbances, offering peace of mind and continuity.

Lead Time

• Availability: Usually in Stock

Key Features

• Main Input Voltage: 230 V
• Main Output Voltage: 230 V
• Rated Power:
  • 450 W
  • 800 VA
• Product Type: Uninterruptible power supply (UPS)
• Input Connection Type: BS1363A British
• Output Connection Type: 4 Universal Receptacle
• Cable Length: 1.50 meters
• Battery Type: Lead-acid battery
• Provided Equipment: User manual

Batteries & Runtime

• Battery Life: 3 to 5 years
• Extended Runtime: Not available

General Specifications

• Redundant: No
• UPS Size: WS (Wall/Shelf mountable)
• Physical Dimensions:
  • Height: 9.25 cm
  • Width: 16.05 cm
  • Depth: 30.5 cm
  • Net Weight: 5.3 kg
• Colour: Black
• Mounting Mode: Not rack-mountable
• Two Post Mountable: No
• USB Compatible: No

Input Specifications

• Network Frequency: 50/60 Hz +/- 5 Hz auto-sensing
• Input Voltage Limits: 170 to 280 V

Output Specifications

• Maximum Configurable Power:
  • 450 W
  • 800 VA
• Output Frequency: 50/60 Hz +/- 1 Hz unsynchronized
• UPS Type: Line interactive
• Wave Type: Stepped approximation to a sinewave
• Transfer Time: 6 ms typical, 10 ms maximum

Conformance

• Product Certifications: CE
• Standards:
  • EN/IEC 62040-1:2019/A11:2021
  • EN/IEC 62040-2:2006/AC:2006
  • EN/IEC 62040-2:2018

Environmental Specifications

• Ambient Air Temperature for Operation: 0 to 40 °C
• Relative Humidity: 0 to 90%
• Operating Altitude: 0 to 6667 ft
• Ambient Air Temperature for Storage: -20 to 50 °C
• Storage Relative Humidity: 0 to 90%
• Storage Altitude: 0 to 15240 meters
• Acoustic Level: 40 dBA
• IP Degree of Protection: IP20

Communications & Management

• Alarm: Audible alarms for battery operation, low battery, and overload conditions.

Surge Protection and Filtering

• Surge Energy Rating: 156 Joules

Packing Units

• Package Type: PCE (Piece)
• Number of Units per Package: 1
• Package Dimensions:
  • Height: 23.7 cm
  • Width: 37.3 cm
  • Length: 14.3 cm
  • Weight: 5.6 kg
• SCC14: 10731304344084
