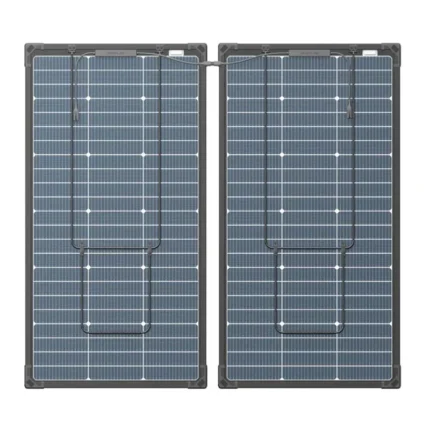

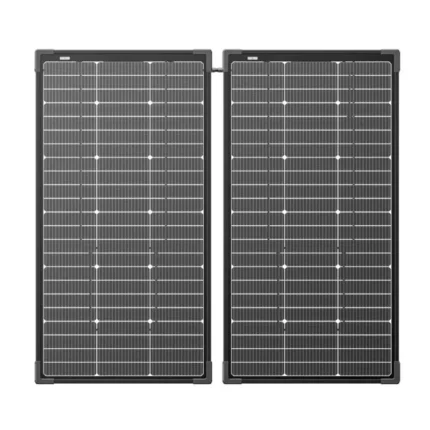

EcoFlow 125W Bifacial Modular Solar Panel x 2PCS
EcoFlow 125W Bifacial Modular Solar Panel x 2PCS
-
Modular design: Max parallel connection of 8 panels (1000W)
-
Adjustable angle (30-60°) for optimal solar energy collection
-
Up to 25% conversion efficiency
-
STC 125W，BNPI 138W
-
TOPCon solar cells perform well in low light and high temperatures
-
Built to last with an IP68 waterproof rating
-
Versatile use for home, backyard, and RV setups
-
Lightweight: 4 panels weigh only 35.2 lb (16.2kg)
-
Up to 5-year warranty and 30-year lifespan
KSh 41,400.00 plus 16% VAT
EcoFlow 125W Bifacial Modular Solar Panel x 2PCS
Key Features:
- Up to 25% High Efficiency: With N-TYPE solar cell technology, the 125W solar panel has a high conversion efficiency of up to 25%. The dual-sided design captures more solar energy, generating up to 138W output. Ideal for home PV systems or power stations.
- Modular Design: Connect up to 8 panels in a parallel connection (1000W), or as many as 12 × 125 watt solar panels in a 4 parallel, 3 series setup to generate up to 1656W. The EcoFlow 125W Bifacial Solar Panel features an innovative modular design, with 125W, 50V, and 3A current output.

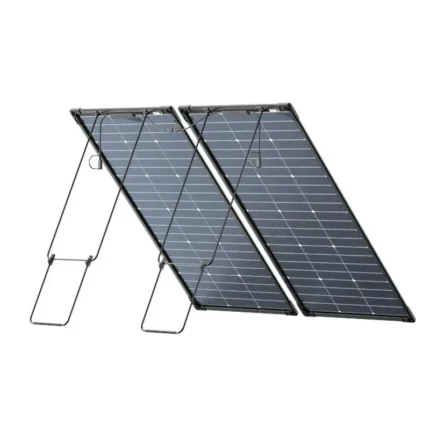

- Maximum Solar Exposure: Integrated 30-60° adjustable support for optimal solar generation. The screw-in design ensures stability, perfect for long-term outdoor use. The additional Solar Angle Guide keeps sunlight at a 90° angle and concentrates the sun’s rays onto the surface of your solar panel.
- Durable, All-Weather Design: Built with a robust anti-corrosive aluminum frame, N-TYPE cells feature 1 mm ultra-thin tempered glass for excellent light transmission, POE films for UV and moisture resistance, and PET backsheets for durability. The panel is IP68-rated with a waterproof XT60-W connector, ensuring robust, weather-resistant performance.
- Plug and Play with Your Power System: Easily connect to third-party solar systems using the included photovoltaic connector (MC4 compatible). Safely charge your power systems and portable power stations with XT60 connectors, featuring waterproof, touch-safe, anti-leak technology for reliable performance.
- Flexible & Lightweight: The 125W solar panel weighs only 9.26 lb (2×125W weighs 18.5 lb). The modular design enables flexible power configuration.The system can be split into individual panels, offering both flexibility and reduced weight.
Specifications:-
• Rated Power: STC: 125W (±3W)
| BNPI: 138W (±3W)
• Open Circuit Voltage: 50V
• Short Circuit Current: STC: 3.2A
| BNPI: 3.4A
• Optimal Operating Voltage: 43V
• Optimal Operating Current: STC: 3A
| BNPI: 3.2A
• Recommended Ambient Temperature: -40°C to 85°C (-24°F to 185°F)
• Efficiency: 25%
• Bifaciality Coefficient: 80% ±5%
• Weight: Approx. 4.2 kg (9.26 lbs)
• Dimensions (L × W × H): 612 × 1154 × 22 mm (24.1 × 45.4 × 0.87 in)
• Maximum System Voltage: 600V DC (IEC/UL)
• Cell Type: TOPCon monocrystalline silicon
• Connector Type: XT60
• Waterproof & Dustproof Rating: Solar Panel: IP68
| XT60 Connector: IP68
• Lifespan: 30 years (90% capacity retention)
| Brand | ECOFLOW |
|---|
