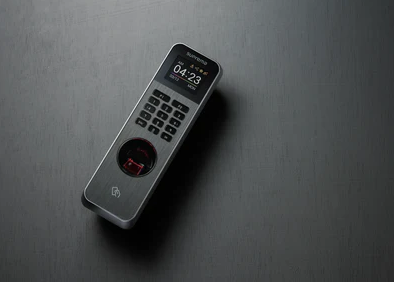

Suprema Bio-Lite N2 is an outdoor fingerprint terminal for Access Control and Time & Attendance Control. It offers Fast Fingerprint Matching Speed combined with Dual Frequency, a Multi-Smartcard Reader and the possibility to use your smartphone as a credential thanks to Bio-Star 2 Mobile Card. It provides added flexibility in system design with multi-class RFID reading technology.

Suprema Bio-Lite N2 BLN2-ODB is an outdoor biometric fingerprint terminal that can be used for access control and time attendance management. It is designed to work in harsh environments and can withstand extreme weather conditions.

This device features a built-in camera for capturing images of users during enrollment and verification, and it also has an IP65-rated weather-resistant housing, which makes it suitable for outdoor installations.

The Bio-Lite N2 BLN2-ODB supports various types of credentials, including fingerprint, RFID card, and PIN code, making it a versatile option for businesses and organizations of all sizes.

Product Description

• Faster Fingerprint Matching Speed
• IP67, Dust & Water Proof
• Communicates with Smartphones
• Dual Frequency, Multi-Smartcard Reader
• Versatile Interfaces

Faster Fingerprint Matching Speed

Bio-Lite N2 features a class-leading 1.2GHz CPU that enhances user experience by offering precise control of locking devices, and quick response for users.

IP67, Dust & Water Proof

Bio-Lite N2 offers superior ingress protection with its IP67 rated rugged structure. The device provides superior protection against invasive moisture, dust and even liquids. This protection is achieved with meticulous sealing and extra protective engineering from Suprema. No matter how harsh the environment, Bio-Lite N2 is the ideal choice for outdoor applications.

Communicates with Smartphones

With Bio-Star 2 Mobile card, as a credential, your smartphone is a key to access.

Dual Frequency, Multi-Smartcard Reader

Featuring dual-frequency RFID technology, Bio-Lite N2 supports both LF(125kHz) and HF(13.56MHz) RFID including all RFID standards that HID multi CLASS readers support. On top of fingerprint credential, Bio-Lite N2 supports most types of RFID card standards with a single device including 125kHz EM, HID Proxy & 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, iCLASS SE/SR, NFC and 2.4GHz BLE.

Versatile Interfaces

Bio-Lite N2 comes with not only a TCP/IP interface, but also more traditional interfaces (RS-485, Wiegand) to provide higher flexibility and multiple installation options for different environments. It also offers 2 internal inputs and 1 internal relay output to control peripheral devices. The I/O ports can also be expanded using the Secure I/O accessory.

Specifications
