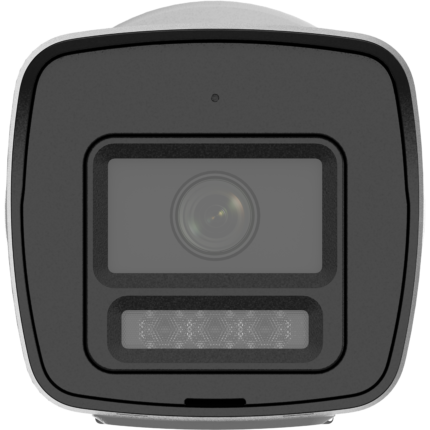

Hikvision DS-2CD1023G2-LIUF/SL(4mm)(O-STD) 2MP Smart Hybrid Light IP Camera

The Hikvision DS-2CD1023G2-LIUF/SL is a 2MP smart hybrid light IP camera designed for high-definition video surveillance. This camera combines advanced imaging technology with smart features to deliver clear and detailed images under various lighting conditions. With its 4mm fixed lens and hybrid light technology, the camera ensures optimal performance both during the day and night. It is suitable for a wide range of security applications, including residential, commercial, and industrial environments.

Specifications

• Camera
  • Sensor: 1/2.8″ Progressive Scan CMOS
  • Resolution: 2MP (1920×1080)
  • Lens: 4mm fixed lens
  • Field of View: 85° (horizontal), 45° (vertical), 100° (diagonal)
  • Minimum Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
  • Shutter Speed: 1/3 s to 1/100,000 s
• Image
  • Day/Night Mode: IR cut filter with auto switch
  • Wide Dynamic Range: 120 dB
  • Digital Noise Reduction: 3D DNR
  • Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Network
  • Compression Standard: H.265/H.264/MJPEG
  • Bit Rate: 32 Kbps to 8 Mbps
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • Security: Password protection, HTTPS encryption, IEEE 802.1X port-based network access control, IP address filter
• Smart Features
  • Motion Detection: Yes
  • Line Crossing Detection: Yes
  • Intrusion Detection: Yes
  • Region of Interest (ROI): Yes
• General
  • Operating Conditions: -30°C to 60°C (-22°F to 140°F), Humidity 95% or less (non-condensing)
  • Power Supply: 12 VDC ± 25%, PoE (802.3af, class 3)
  • Power Consumption: Max. 7 W
  • Dimensions: 164.4 mm × 69.1 mm × 65.7 mm (6.47″ × 2.72″ × 2.59″)
  • Weight: 420 g (0.93 lb)
