Power Backup, UPS

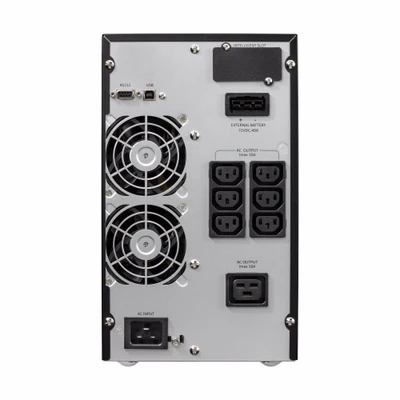

Eaton 9E UPS, 3000 VA, 2400W, Input: C20, Output: (6) C13, (1) C19, Tower Online
9E3000I Eaton 9E UPS, 3000 VA, 2400W, Input: C20, Output: (6) C13, (1) C19, Tower
| Product Name |
Eaton 9E UPS
|
| Catalog Number |
9E3000I
|
| UPC |
786689166588
|
| Product Length/Depth |
19 cm
|
| Product Height |
33 cm
|
| Product Width |
39.9 cm
|
| Product Weight |
24.2 kg
|
| Compliances |
CE Marked
TUV |
| Certifications |
IEC/EN 62040-1
IEC/EN 62040-2 CE EAC |
Battery
| Battery type |
Sealed, lead-acid
|
| Runtime graph |
View runtime graph
|
| Battery replacement |
Replacable batteries
|
| Battery quantity |
6
|
| Battery management |
|
| Battery rating |
12 V / 9 Ah
|
| Extended battery capability |
Yes
|
Electrical output
| Receptacle |
(6) C13, (1) C19
|
| Voltage |
230V
|
| Wattage |
2400 W
|
| Output power factor |
0.8
|
| Output voltage range |
220/230/240 V +/- 2%
|
| Output waveform |
Sine wave
|
| Output nominal voltage |
230V default (220/230/240V)
|
| Voltage distortion output (linear load) – max |
3
|
| Feed type |
1
|
| Topology |
Online/Double-conversion
|
| VA rating |
3000 VA
|
KSh 150,000.00 plus 16% VAT
Eaton 3000VA 9E3000I 9E 2400W 3KVA Tower UPS
- Online double conversion topology
- Intuitive user interface with an LCD panel that provides, on a single screen, clear information about UPS status
- Reliable UPS at an attractive price
- Provides more real power (watts) to protect more equipment with a 0.8 power factor
- Internal bypass and maintenance bypass are available as standards for service continuity
- Combo input (3:1 and 1:1) on the 10kVA, 15kVA, 20 kVA
- Long runtime with up to 4 optional EBM cabinets
- Extra-long runtime available with 3kVA, 10kVA and 20kVA XL models
- XL models with internal supercharger for extra-long runtime
| Brand | Eaton |
|---|
Based on 0 reviews
Be the first to review “Eaton 9E UPS, 3000 VA, 2400W, Input: C20, Output: (6) C13, (1) C19, Tower Online”
