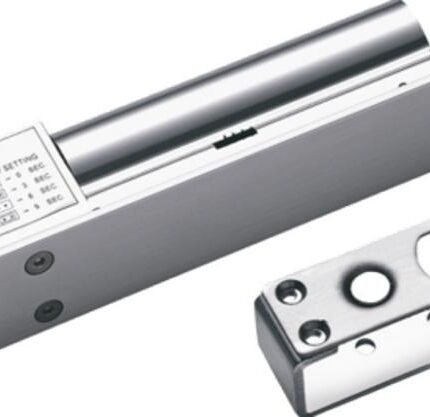

HIKVISION DS-K4T108 Electric Bolt

Value Series Bolt Electric Lock

Electric Bolt, 205×34×42mm (8.1×1.3×1.7″), 12VDC, ≤1.2A (Startup Current), 0.2A (Standby)
Auto-locking if induction module is detected
Suitable for wooden door, glass door, metal door
Equipped with internal voltage dependent resistor (MOV)
Signal output of door lock status (NO\NC\COM)
Abrasion-proof materials
Shell is made of aldural and is hard anodizing electroplated.

KSh 4,500.00 plus 16% VAT

General
Working Temperature :-10°C~+55°C (14°F~131°F)
Working Humidity: 0~95% (Relative Humidity)
Working Current: ≤1.2A (Startup Current) 0.2A (Standby)
Dimension Of Lock Body (L×W×H): 205×34×42mm (8.1×1.3×1.7″)
Unlock Method: Current Interruption
Input Voltage: 12VDC
Signal Output: Dry Contact Output, Max. Voltage 18V. If the wiring is COM/NC, NO Output: Locking; NC Output: Unlocking. If the wiring is COM/No, NC Output: Locking; NO Output: Unlocking;
Suitable Door: Wooden Door, Glass Door, and Metal Door
Delay Duration: 0/3/6/9s Optional
Surface Temperature: ≤ Ambient Temperature +10°C (50°F)
ShellHard Anodizing Electroplating Operated
0.74kg
