Parking Management, Vehicle Access Control Managemnet
Hikvision DS-TMG022 Special S Coil Vehicle Detector
Hikvision DS-TMG022 Special S Coil Vehicle Detector
- Including 2 inputs of inductive loops
- Recognizes vehicles of more than two wheels
- Detects traffic events including forward/wrong-way driving and speeding
- Accepts traffic lights connection to upload light status
- Fault detection to output operating status of loops and traffic light detector
- Supports voltage surge protection
KSh 11,500.00 plus 16% VAT

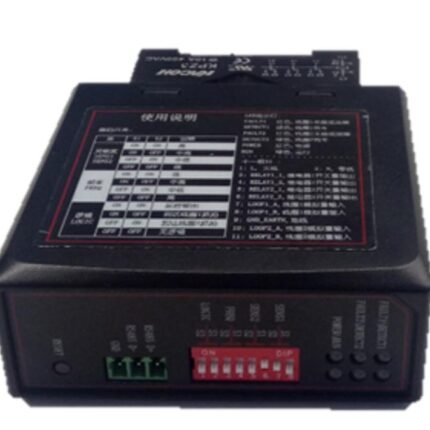

Hikvision DS-TMG022 Special S Coil Vehicle Detector
The Hikvision DS-TMG022 is a 2-ch loop-based digital vehicle detector. The device offers high reliability and features a high-performance microprocessor along with channel sequence scanning technology. With functions of frequency self-adaption and full environment tracking, the device can track passing vehicles in a fast, effective and accurate way. The device integrates standard vehicle counting algorithm, and can be widely deployed in entrance/exit systems with traffic cameras.
Features and Functions
- 2 inputs of inductive loops
- Recognizes vehicles of more than two wheels
- Provides traffic statistics including traffic flow, speed and length
- Detects traffic events including forward/wrong-way driving and speeding
- Built-in EEPROM for saving configuration parameters in power cut
- Accepts traffic lights connection to upload light status
- Fault detection to output operating status of loops and traffic light detector
- Voltage surge protection
Specification
| Model | DS-TMG022 |
| Inductance self-tuning range | 20 to 1000 μH |
| Vehicle detection rate | ≥ 99% |
| Sensitivity (-△L/L) | 0.02% to 0.96%, 4 levels adjustable |
| Loop operating frequency | 28 KHz to 120 KHz, 4 levels adjustable (highest, high, low, lowest) |
| Max. response time | 32±2ms |
| Loop fault recovery time | ≤ 100ms |
| Loop fault detection interval | ≤ 10ms |
| Output port | 2 relay output, VDRM 70 V, max. current 30 mA |
| Power supply | 220 VAC |
| Power consumption | ≤ 3 W |
| Operating temperature | -30 °C to +70 °C (-31 °F to 167 °F) |
| Operating humidity | < 90%, non-condensing |
| Dimensions | 105 × 88 × 40mm |
| Brand | Hikvision |
|---|
