RBOmniTikG-5HacD Mikrotik OmniTIK 5 ac 7.5dBi 5GHz Dual chain 5x Gigabit Ethernet ports
RBOmniTikG-5HacD Mikrotik OmniTIK 5 ac 7.5dBi 5GHz Dual chain 5x Gigabit Ethernet ports
- Weatherproof Design: The device is built to withstand harsh outdoor environments, making it ideal for outdoor deployment without additional protective enclosures.
- Advanced Wireless Protocols: Supports advanced wireless standards and protocols, including 802.11a/n/ac, which allow for better performance and compatibility with newer wireless devices.
- Security: Features robust security options including WPA2-PSK, WPA2-EAP, and WPA3, ensuring secure wireless communication.
- Configurability: RouterOS provides comprehensive options for network configuration, including firewall, bandwidth management, and user access control, among others.
- Scalability: The inclusion of multiple Ethernet ports and dual wireless chains supports the scalability of network setups, facilitating the expansion of network coverage areas and connection of additional devices.
KSh 19,000.00 plus 16% VAT
RBOmniTikG-5HacD Mikrotik OmniTIK 5 ac 7.5dBi 5GHz Dual chain 5x Gigabit Ethernet ports

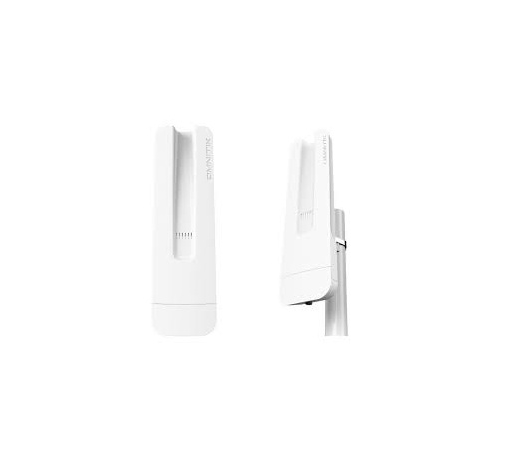

Mikrotik OmniTIK 5 ac features five Gigabit Ethernet ports and support for 802.11ac. It’s equipped with a powerful 720MHz CPU, 128MB RAM, high power 802.11a/n/ac Dual Chain wireless (support for AC as well as backwards compatible with regular 802.11a/n CPE) and comes with a new design weatherproof outdoor enclosure, two integrated 7.5dBi 5GHz omni antennas, a power supply, a PoE injector and a mounting kit.
Specifications
| Details | |
|---|---|
| Product code | RBOmniTikG-5HacD |
| Architecture | MIPSBE |
| CPU | QCA9557 |
| CPU core count | 1 |
| CPU nominal frequency | 720 MHz |
| Switch chip model | QCA8337 |
| Dimensions | 416 x 129 x 58 mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 14 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 12-57 V |
Wireless specifications
| Details | |
|---|---|
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 7.5 |
| Wireless 5 GHz chip model | QCA9892 |
| Wireless 5 GHz generation | Wi-Fi 5 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 5 |
Peripherals
| Details | |
|---|---|
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| Beeper | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP54 |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 31 | -96 |
| 54MBit/s | 27 | -81 |
| MCS0 | 30 | -96 |
| MCS7 | 27 | -77 |
| MCS9 | 22 | -72 |
